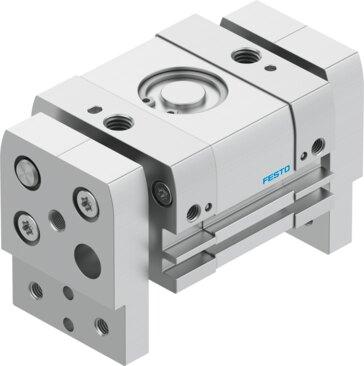

Reference imageConfirm configuration by manufacturer part number.
Festo
8112217
Parallel gripper DHPL-16-30-P-A
The Festo part number 8112217 is a double-acting pneumatic parallel gripper featuring two jaws with a size of 16, a complete stroke of 30 mm, and a stroke per gripper jaw of 15 mm. Operating at pressures ranging from 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, or 21.75 psi to 116 psi) with elastic cushioning rings or pads at both ends, this gear rack and pinion structural design achieves a max operating frequency of 2 Hz and position sensing via proximity switch. It incorporates a plain-bearing guide delivering a maximum gripper jaw repetition accuracy of 0.03 mm, a max interchangeability of 0.2 mm, a rotational symmetry of 0.2 mm, a max gripper jaw backlash Sz of 0.072 mm, and a max gripper jaw angular play ax, ay of 0.15 deg in any mounting position without gripping force backup. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112217
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112217.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Complete stroke
- 30 mm
- Stroke per gripper jaw
- 15 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.15 deg
- Max. gripper jaw backlash Sz
- 0.072 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Gear rack/pinion
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 53 ms
- Min. closing time at 6 bar
- 75 ms
- Max. mass per external gripper nger
- 93 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 180 N
