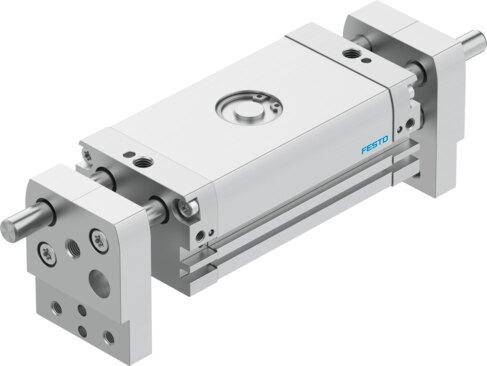

Reference imageConfirm configuration by manufacturer part number.
Festo
8112219
Parallel gripper DHPL-20-100-P-A
This Festo industrial component, part number 8112219, is a double-acting parallel pneumatic gripper featuring a gear rack and pinion structural design with a plain-bearing guide and two gripper jaws. It provides a size of 20, a complete stroke of 100 mm with 50 mm per gripper jaw, elastic cushioning rings or pads at both ends, and position sensing via proximity switch for any mounting position. The device operates at pressures from 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, 21.75 psi to 116 psi) with a repetition accuracy of 0.03 mm, a max operating frequency of 1.5 Hz, a max interchangeability of 0.2 mm, max gripper jaw angular play ax, ay of 0.14 deg, max gripper jaw backlash Sz of 0.068 mm, rotational symmetry of 0.2 mm, a min opening time at 6 bar of 189 ms, and a min closing time at 6 bar of 274 ms. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112219
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112219.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Complete stroke
- 100 mm
- Stroke per gripper jaw
- 50 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.14 deg
- Max. gripper jaw backlash Sz
- 0.068 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Structural design
- Gear rack/pinion
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 1.5 Hz
- Min. opening time at 6 bar
- 189 ms
- Min. closing time at 6 bar
- 274 ms
- Max. mass per external gripper nger
- 170 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 316 N | 158 N
- Gripping force per gripper jaw at 6 bar, closing
- 238 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112219. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
