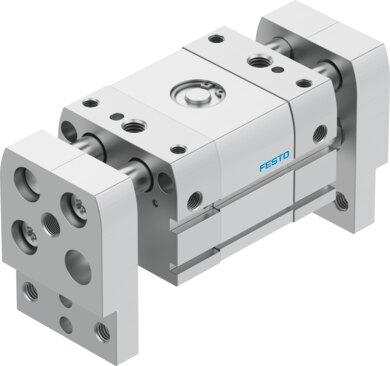

Reference imageConfirm configuration by manufacturer part number.
Festo
8112223
Parallel gripper DHPL-32-70-P-A
This Festo industrial component, part number 8112223, is a double-acting parallel pneumatic gripper featuring two gripper jaws with a size of 32, a complete stroke of 70 mm, and a stroke per jaw of 35 mm. Engineered with a gear rack and pinion structural design, a plain-bearing guide, and elastic cushioning rings or pads at both ends, the unit operates within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, or 21.75 psi to 116 psi) and achieves a repetition accuracy of 0.03 mm. It supports position sensing via proximity switch, allows any mounting position, and delivers a maximum operating frequency of 1 Hz with minimum opening and closing times at 6 bar of 112 ms and 209 ms respectively. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112223
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112223.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Complete stroke
- 70 mm
- Stroke per gripper jaw
- 35 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.12 deg
- Max. gripper jaw backlash Sz
- 0.066 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Structural design
- Gear rack/pinion
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 112 ms
- Min. closing time at 6 bar
- 209 ms
- Max. mass per external gripper nger
- 498 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 760 N | 380 N
- Gripping force per gripper jaw at 6 bar, closing
- 570 N
