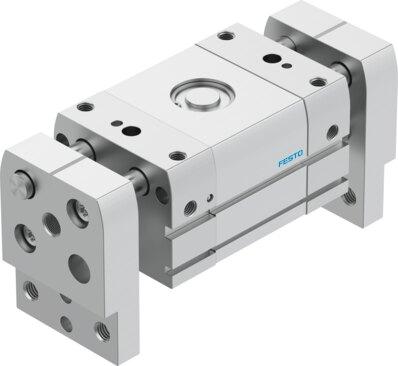

Reference imageConfirm configuration by manufacturer part number.
Festo
8112225
Parallel gripper DHPL-40-100-P-A
The Festo part number 8112225 is a size 40 pneumatic gripper featuring two parallel gripper jaws driven by a gear rack and pinion structural design with a plain-bearing guide. This double-acting component provides a 100 mm complete stroke, a 50 mm stroke per gripper jaw, elastic cushioning rings or pads at both ends, and a pneumatic gripper repetition accuracy of 0.03 mm within an operating pressure range of 0.15 MPa to 0.8 MPa. It supports any mounting position, achieves a max operating frequency of 1 Hz, and allows position sensing via a proximity switch while maintaining a max interchangeability of 0.2 mm and max gripper jaw backlash Sz of 0.065 mm. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112225
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112225.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Complete stroke
- 100 mm
- Stroke per gripper jaw
- 50 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.065 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Gear rack/pinion
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 220 ms
- Min. closing time at 6 bar
- 281 ms
- Max. mass per external gripper nger
- 801 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 1100 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112225. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
