Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

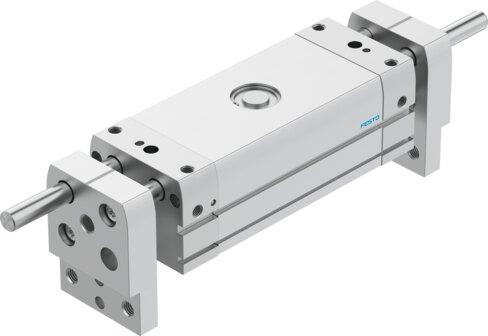

Reference imageConfirm configuration by manufacturer part number.
Festo
8112226
Parallel gripper DHPL-40-200-P-A
The Festo part number 8112226 is a double-acting pneumatic industrial component featuring a parallel two-jaw gripper design driven by a gear rack and pinion mechanism with a size 40 rating and a complete stroke of 200 mm, delivering 100 mm of stroke per gripper jaw. This unit operates within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, or 21.75 psi to 116 psi) at a maximum operating frequency of 0.6 Hz, utilizing elastic cushioning rings or pads at both ends and plain-bearing guides while supporting position sensing via proximity switch in any mounting position. It achieves a pneumatic gripper repetition accuracy of 0.03 mm, a max interchangeability and rotational symmetry of 0.2 mm, a max gripper jaw angular play ax, ay of 0.1 deg, and a max gripper jaw backlash Sz of 0.065 mm without gripping force backup. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112226
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112226.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Complete stroke
- 200 mm
- Stroke per gripper jaw
- 100 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.065 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Gear rack/pinion
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 0.6 Hz
- Min. opening time at 6 bar
- 427 ms
- Min. closing time at 6 bar
- 524 ms
- Max. mass per external gripper nger
- 801 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54
- Ambient temperature
- -10 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 1180 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112226. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
