Festo
8112950

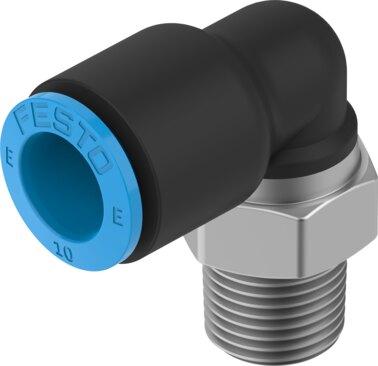

Push-in L-fitting NPQE-L-R14-Q10-P10
The Festo 8112950 is an L-shaped industrial component featuring an 8.5 mm nominal width, an external thread R1/4 pneumatic connection 1, and a connection for 10 mm outside diameter pneumatic tubing via a push-pull structural design. This standard-sized part operates at pressures from -0.095 MPa to 0.8 MPa with compressed air conforming to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -5 °C to 60 °C, supporting lubricated operation and utilizing a coating seal on the screwed plug with an external hexagon SW17 mounting. Weighing 26.25 g with a blue releasing ring, it offers CRC 1 corrosion resistance, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and RoHS compliance, packaged in a pack size of 10 for any mounting position. Submit part number 8112950, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112950
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112950.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8.5 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 26.25 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112950. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
