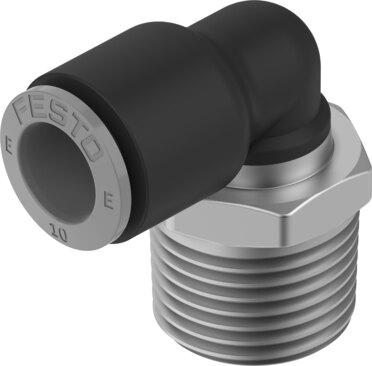

Reference imageConfirm configuration by manufacturer part number.
Festo
8112960
Push-in L-fitting NPQE-L-R12-Q10-P5
The Festo part number 8112960 is an L-shaped industrial component featuring a nominal width of 9.3 mm, an R1/2 external thread for pneumatic connection 1, and a connection for 10 mm outside diameter pneumatic tubing for connection 2. Featuring a push-pull structural design with a blue releasing ring and a coating seal on the screwed plug, this unit operates across a pressure range of -0.095 MPa to 0.8 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Supplied in a pack size of five with a product weight of 41.85 g each, the assembly offers an external hexagon SW21 mounting type, an ambient temperature range of -5 °C to 60 °C, and class 4 cleanroom suitability according to ISO 14644-1. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112960
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112960.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 9.3 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 41.85 g
- Type of mounting
- External hexagon SW21
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112960. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
