Festo
8112961

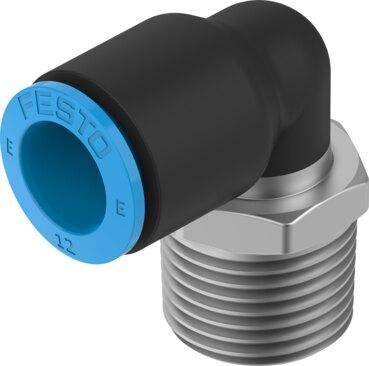

Push-in L-fitting NPQE-L-R12-Q12-P5
The Festo 8112961 is an L-shaped industrial component featuring a 9.5 mm nominal width, an external thread R1/2 pneumatic connection 1, and a connection for 12 mm outside diameter pneumatic tubing at connection 2. Utilizing a push-pull structural design with a blue releasing ring and a coated screwed plug seal, this standard-sized part operates within a pressure range of -0.095 MPa to 0.8 MPa and supports lubricated compressed air per ISO 8573-1:2010 [7:4:4]. Weighing 43.51 g with an external hexagon SW21 mounting type, it functions in ambient temperatures from -5 °C to 60 °C, carries CRC 1 corrosion resistance, and meets VDMA24364 Zone III LABS conformity along with ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112961
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112961.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 9.5 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 43.51 g
- Type of mounting
- External hexagon SW21
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
