Festo
8112967

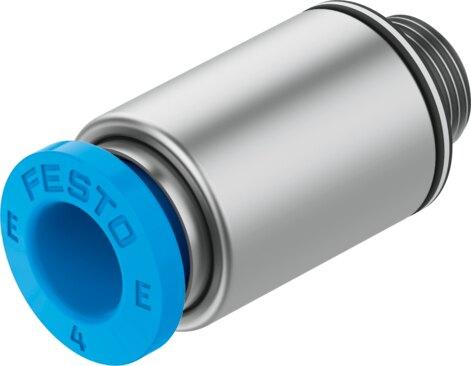

Push-in fitting NPQE-DK-M5-Q4-P10
The Festo part number 8112967 is a mini straight industrial component featuring a 2.5 mm nominal width, an M5 external thread pneumatic connection 1, and a connection 2 for 4 mm outside diameter pneumatic tubing utilizing a push-pull structural design with a sealing ring on the screwed plug. Operating within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar or -13.775 psi to 116 psi) and temperatures from -5 °C to 60 °C, this unit accommodates compressed air per ISO 8573-1:2010 [7:4:4] with lubricated operation possible. Supplied in a pack size of 10 with a product weight of 2.85 g each, it features an internal hex AF2.5 mounting type requiring a nominal tightening torque of 0.8 Nm with a ±5% tolerance, meeting CRC 1, VDMA24364 Zone III LABS conformity, and ISO 14644-1 Class 4 cleanroom suitability. Submit part number 8112967, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112967
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112967.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 2.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Nominal tightening torque
- 0.8 Nm
- Tolerance for nominal tightening torque
- ±5%
- Product weight
- 2.85 g
- Type of mounting
- Internal hex AF2.5
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- NBR | high-alloy stainless steel
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
