Festo
8112990

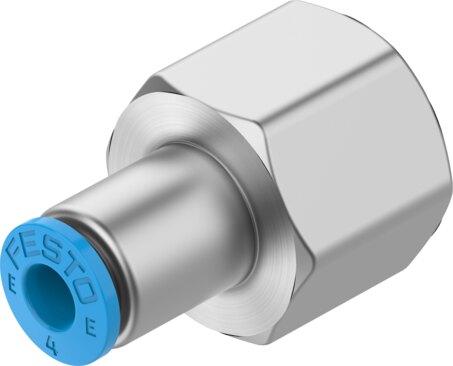

Push-in fitting NPQE-D-G14F-Q4-P10
The Festo 8112990 is a standard industrial component featuring a straight design with a nominal width of 2.5 mm, an internal thread G1/4 pneumatic connection 1, and a pneumatic connection 2 for a 4 mm outside diameter tubing utilizing a push-pull principle. Constructed with a nickel-plated brass housing, external hexagon SW17 mounting type, and a blue releasing ring, this part operates within a pressure range of -0.95 bar to 8 bar and ambient temperatures from -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. Each pack size contains 10 units, weighing 22.8 g each, with VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and CRC 1 low corrosion stress resistance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112990
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112990.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.5 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 22.8 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
