Festo
8112991

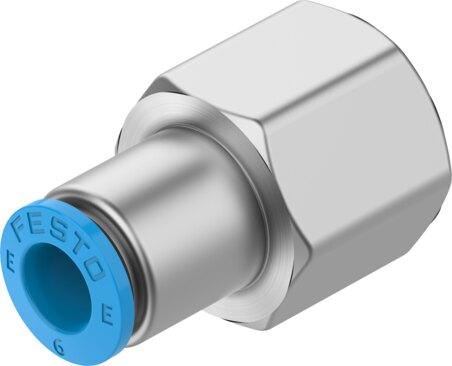

Push-in fitting NPQE-D-G14F-Q6-P10
The Festo 8112991 is a standard straight industrial component featuring a nominal width of 4.5 mm, an internal thread G1/4 pneumatic connection 1, and a pneumatic connection 2 for 6 mm outside diameter tubing utilizing a push-pull structural design with a blue releasing ring. Constructed with a nickel-plated brass housing, this part weighs 22.67 g, mounts via an external hexagon SW17 in any position, and operates within a pressure range of -0.095 MPa to 0.8 MPa for compressed air as per ISO 8573-1:2010 [7:4:4] under ambient temperatures from -5 °C to 60 °C. Packaged in a quantity of 10, the RoHS-compliant assembly offers VDMA24364 Zone III LABS conformity, CRC 1 low corrosion stress resistance, ISO 14644-1 Class 4 cleanroom suitability, and permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112991
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112991.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.5 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 22.67 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112991. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
