Festo
8112998

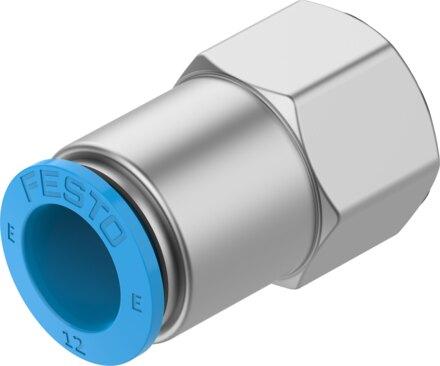

Push-in fitting NPQE-D-G38F-Q12-P5
The Festo part number 8112998 is a standard straight industrial component featuring a 10 mm nominal width, an internal thread G3/8 pneumatic connection 1, and a pneumatic connection 2 for a 12 mm outside diameter pneumatic tubing utilizing a push-pull structural design with a blue releasing ring. Constructed with a nickel-plated brass housing, external hexagon SW21 mounting, and any mounting position, this component operates across a temperature range of -5 °C to 60 °C with an operating pressure of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar | -13.775 psi to 116 psi) for compressed air per ISO 8573-1:2010 [7:4:4]. This RoHS-compliant part comes in a pack size of 5, weighs 40.93 g, features VDMA24364 Zone III LABS conformity, Class 4 cleanroom suitability per ISO 14644-14, and CRC 1 low corrosion stress, while supporting lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8112998
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8112998.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 10 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 40.93 g
- Type of mounting
- External hexagon SW21
- Pneumatic connection 1
- Internal thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8112998. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
