Festo
8113030

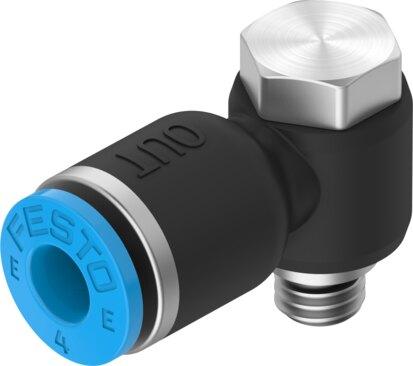

Push-in L-fitting NPQE-LH-M5-Q4-P10
The Festo 8113030 is a standard L-shaped industrial component featuring an M5 external thread for pneumatic connection 1 and a push-pull design for 4 mm outside diameter pneumatic tubing at connection 2. Operating across a pressure range of -0.095 MPa to 0.8 MPa with compressed air conforming to ISO 8573-1:2010 [7:4:4], this 6.66 g unit includes a sealing ring on the screwed plug and a hollow bolt with an external hex for mounting with a nominal tightening torque of 0.8 Nm. It achieves a CRC rating of 1, VDMA24364 Zone III LABS conformity, and ISO 14644-1 Class 4 cleanroom suitability while functioning at ambient temperatures from -5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113030
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113030.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 1.8 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Nominal tightening torque
- 0.8 Nm
- Tolerance for nominal tightening torque
- ±5%
- Product weight
- 6.66 g
- Type of mounting
- Hollow bolt with external hex
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- O-ring material
- NBR
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113030. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
