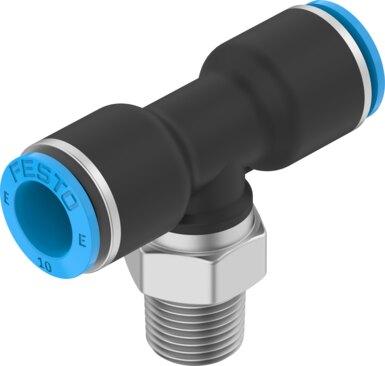

Reference imageConfirm configuration by manufacturer part number.
Festo
8113059
Push-in T-fitting NPQE-T-R14-Q10-P10
The Festo part number 8113059 is a standard T-shaped industrial component featuring an 8.5 mm nominal width, an external thread R1/4 pneumatic connection 1, and a pneumatic connection 2 for a 10 mm outside diameter tubing utilizing the push-pull principle with a blue releasing ring. It operates within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar, -13.775 psi to 116 psi) across a -5 °C to 60 °C ambient temperature using compressed air per ISO 8573-1:2010 [7:4:4], allowing lubricated operation and featuring a coated screwed plug seal with external hexagon SW17 mounting. Weighing 30.34 g in a pack size of 10, this RoHS compliant component holds a CRC 1 corrosion resistance class, VDMA24364 Zone III LABS conformity, and ISO 14644-1 Class 4 cleanroom suitability for any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113059
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113059.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8.5 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 30.34 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
