Festo
8113063

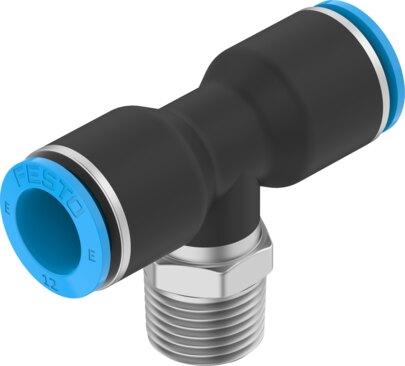

Push-in T-fitting NPQE-T-R38-Q12-P5
The Festo 8113063 is a standard T-shaped industrial component featuring a 9.5 mm nominal width, an external thread R3/8 pneumatic connection 1, and a connection for a 12 mm outside diameter pneumatic tubing at connection 2. Operating within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar / -13.775 psi to 116 psi) for compressed air according to ISO 8573-1:2010 [7:4:4], this part incorporates a push-pull structural design with a blue releasing ring and a coating seal on the screwed plug. It supports any mounting position via an external hexagon SW17, provides lubricated operation capability, and complies with CRC 1, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and RoHS regulations across a -5 °C to 60 °C ambient temperature range. Submit the exact part number, quantity, and application requirements to receive a quote for this pack size of 5 components weighing 35.86 g each.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113063
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113063.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 9.5 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 35.86 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
