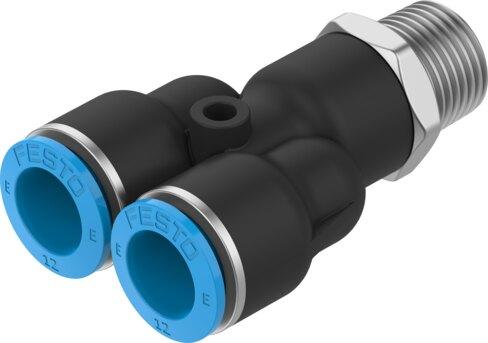

Reference imageConfirm configuration by manufacturer part number.
Festo
8113088
Push-in Y-fitting NPQE-Y-R38-Q12-P5
The Festo 8113088 is a standard-sized Y-shaped industrial component featuring a push-pull structural design, an external hexagon SW21 mounting type, and an R3/8 external thread pneumatic connection 1 alongside a connection for 12 mm outside diameter pneumatic tubing. This part operates with compressed air according to ISO 8573-1:2010 [7:4:4] across an operating pressure range of -0.095 MPa to 0.8 MPa and an ambient temperature range of -5 °C to 60 °C, while achieving Class 4 cleanroom suitability per ISO 14644-1. Supplied in a pack size of 5 with a blue releasing ring and a product weight of 58.54 g, the unit incorporates a coated screwed plug seal and supports lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113088
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113088.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 9 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 58.54 g
- Type of mounting
- External hexagon SW21
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113088. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
