Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

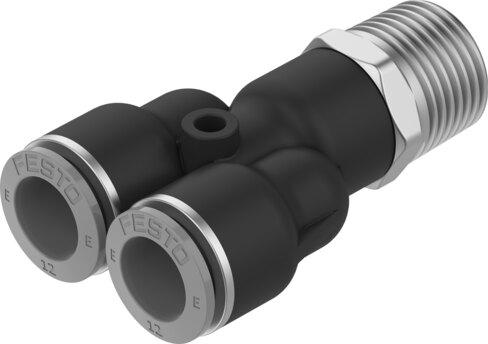

Reference imageConfirm configuration by manufacturer part number.
Festo
8113089
Push-in Y-fitting NPQE-Y-R12-Q12-P5
The Festo 8113089 is a standard Y-shaped industrial component featuring a 9 mm nominal width, an external hexagon SW21 mounting type, an R1/2 external thread for pneumatic connection 1, and a pneumatic connection 2 designed for 12 mm outside diameter tubing utilizing the push-pull principle with a blue releasing ring. It operates within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar, -13.775 psi to 116 psi) and an ambient temperature range of -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4], while supporting lubricated operation, achieving a corrosion resistance class of 1, and meeting VDMA24364 Zone III LABS conformity as well as ISO 14644-1 Class 4 cleanroom suitability. Each pack contains 5 units with a product weight of 64.21 g each, featuring a coated screwed plug seal, RoHS-compliant materials, and a mounting position of any. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113089
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113089.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 9 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 64.21 g
- Type of mounting
- External hexagon SW21
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113089. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
