Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

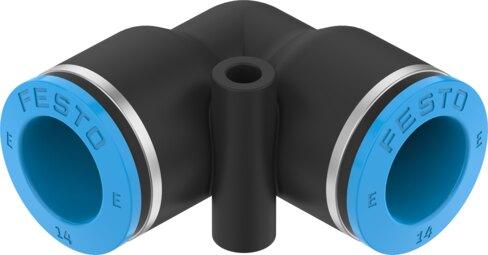

Reference imageConfirm configuration by manufacturer part number.
Festo
8113133
Push-in L-connector NPQE-L-Q14-E-P5
This Festo industrial component, part number 8113133, features an L-shape design with a nominal width of 13 mm and a standard size utilizing the push-pull principle. Supplied in a pack size of 5 with a product weight of 25.59 g, it includes pneumatic connection 1 and pneumatic connection 2 for 14 mm outside diameter pneumatic tubing, alongside a blue releasing ring. The unit operates within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar, -13.775 psi to 116 psi) and an ambient temperature range of -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4], with lubricated operation possible. Constructed with a PBT housing and a POM releasing ring, the component exhibits corrosion resistance class 1, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, RoHS compliance, and supports any mounting position. Submit part number 8113133, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113133
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113133.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 13 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 25.59 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 14 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 14 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113133. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
