Festo
8113154

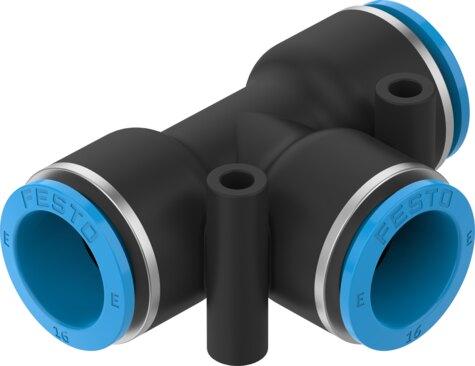

Push-in T-connector NPQE-T-Q16-E-P5
The Festo 8113154 is a standard T-shape industrial component featuring a 14.3 mm nominal width and a push-pull structural design for 16 mm outside diameter pneumatic tubing at both connections. Constructed with a PBT housing and a blue POM releasing ring, this pack of 5 weighs 37.85 g each and operates with compressed air according to ISO 8573-1:2010 [7:4:4] across a pressure range of -0.095 MPa to 0.8 MPa and ambient temperatures from -5 °C to 60 °C with lubricated operation possible. It possesses a corrosion resistance class of 1, VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and RoHS compliance for mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113154
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113154.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 14.3 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 37.85 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113154. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
