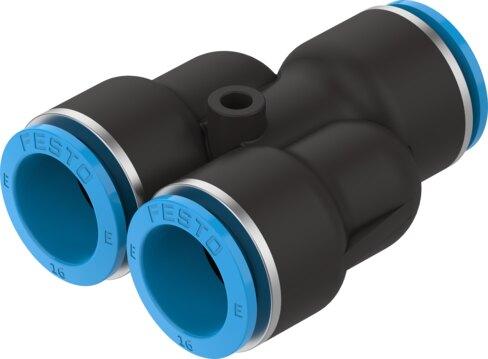

Reference imageConfirm configuration by manufacturer part number.
Festo
8113170
Push-in Y-connector NPQE-Y-Q16-E-P5
The Festo part number 8113170 is a standard Y-shape industrial component featuring a 13 mm nominal width and a push-pull structural design for 16 mm outside diameter pneumatic tubing at both connection points. Constructed with a PBT housing, POM blue releasing ring, and class 1 corrosion resistance, this unit operates across pressures from -0.95 bar to 8 bar (-13.775 psi to 116 psi) and temperatures between -5 °C and 60 °C using compressed air meeting ISO 8573-1:2010 [7:4:4]. This RoHS-compliant component satisfies VDMA24364 Zone III LABS conformity, achieves ISO 14644-1 Class 4 cleanroom suitability, weighs 40.12 g, allows lubricated operation, and supports any mounting position in a pack size of 5. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113170
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113170.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 13 mm
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 40.12 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
