Festo
8113176

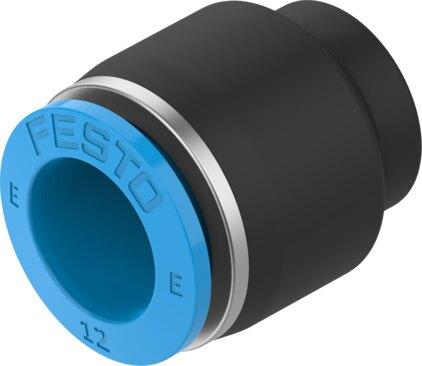

Push-in cap NPQE-P-Q12-P10
The Festo 8113176 is a standard-sized blanking plug designed for 12 mm outside diameter pneumatic tubing, supplied in a pack size of 10 with a product weight of 9.03 g per unit. It operates within a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar | -13.775 psi to 116 psi) and an ambient temperature range of -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4], with lubricated operation possible. Constructed with a PBT housing, POM blue releasing ring, NBR tubing seal, and stainless steel tube retaining claw, the component features corrosion resistance class 1, VDMA24364 Zone III LABS conformity, and ISO 14644-1 Class 4 cleanroom suitability while meeting RoHS material standards and supporting any mounting position. Submit part number 8113176, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113176
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113176.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Mounting position
- Any
- Design
- Blanking plug
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 9.03 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- Stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113176. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
