Festo
8113307
Motor cable NEBM-SF1W31-EH-5-Q15N-LE28
This Festo industrial component, part number 8113307, features a square plug connection with an angled 90-degree cable outlet utilizing a 31-pin configuration conforming to DIN 47100. The control side utilizes a 28-pin open-ended cable, operating within a DC voltage range of 0 V to 50 V at a nominal operating voltage of 24 V. Weighing 1480 g, the assembly includes snap-locking mounting on the field device side and supports a contact durability rating of 30 without a label holder. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113307
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113307.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100
- Cable designation
- Without label holder
- Contact durability
- 30
- Product weight
- 1480 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1

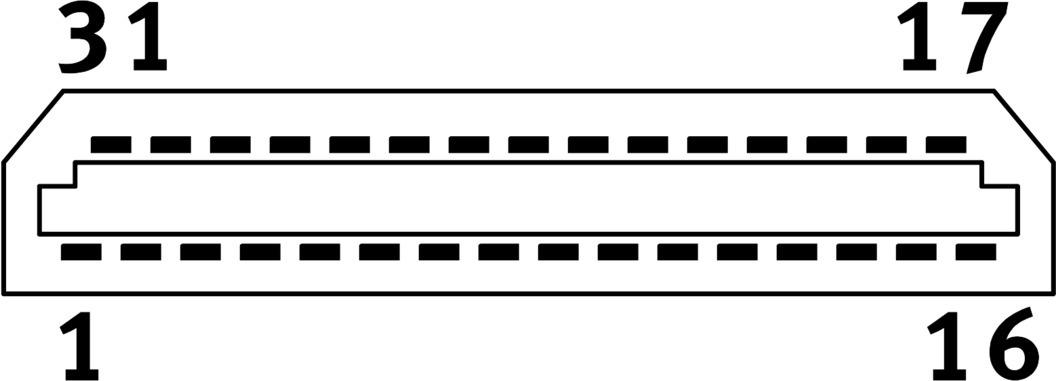

- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, occupied pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 28
- Electrical connection 2, occupied pins/wires
- 28
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 0.5 A
- Surge resistance
- 0.25 kV
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 49.5 mm
- Bending radius, exible cable installation
- 74.25 mm
- Cable diameter
- 9.9 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²)
- Nominal conductor cross section
- 0.15 mm² | 0.35 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113307. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
