Festo
8113308
Motor cable NEBM-SF1W31-EH-5-Q15N-LE14
The Festo 8113308 industrial component features an angled 90-degree square plug for electrical connection 1 with 31 pins, 31 occupied wires, snap-locking mounting, and connection pattern F1 on the field device side, conforming to DIN 47100 without a label holder. Electrical connection 2 on the control side utilizes an open-end cable with 14 pins and 14 occupied wires, supporting a DC operating voltage range of 0 V to 50 V and a nominal DC operating voltage of 24 V, with a total product weight of 1480 g and contact durability of 30. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113308
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113308.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100
- Cable designation
- Without label holder
- Contact durability
- 30
- Product weight
- 1480 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1

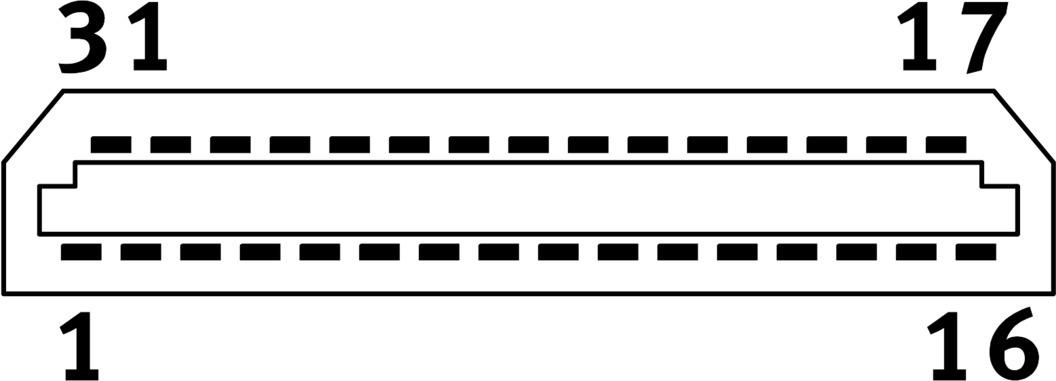

- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, occupied pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 14
- Electrical connection 2, occupied pins/wires
- 14
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 0.5 A
- Surge resistance
- 0.25 kV
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 49.5 mm
- Bending radius, exible cable installation
- 74.25 mm
- Cable diameter
- 9.9 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²)
- Nominal conductor cross section
- 0.15 mm² | 0.35 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113308. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
