Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8113310
One-way flow control valve NEBM-SF1W31-EH-10-Q15N-LE14
This Festo industrial component, part number 8113310, features a square, 90-degree angled plug connection with 31 pins and wires on the field device side, utilizing a snap-locking mount and conforming to DIN 47100. The control side features an open-end cable connection with 14 pins and wires, operating within a DC voltage range of 0 V to 50 V and a nominal DC voltage of 24 V. Weighing 2960 g, the unit includes 30 contact durability and lacks a label holder. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113310
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113310.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100
- Cable designation
- Without label holder
- Contact durability
- 30
- Product weight
- 2960 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1

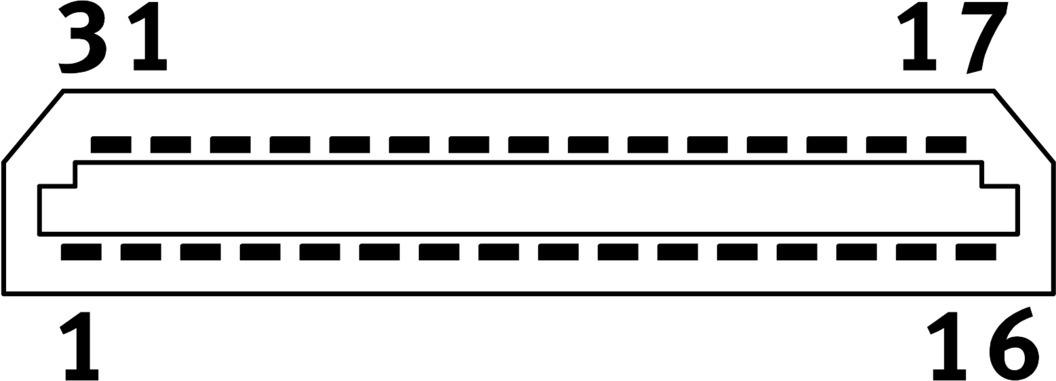

- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, occupied pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 14
- Electrical connection 2, occupied pins/wires
- 14
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 0.5 A
- Surge resistance
- 0.25 kV
- Cable length
- 10 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 49.5 mm
- Bending radius, exible cable installation
- 74.25 mm
- Cable diameter
- 9.9 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²)
- Nominal conductor cross section
- 0.15 mm² | 0.35 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8113310. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
