Festo
8113317
Motor cable NEBM-F1W31-XC-0.2-F1N-DF1W31
This Festo industrial component, part number 8113317, features an angled 90-degree socket connection on both the field device and control sides utilizing connection pattern F1 with 31 occupied pins and wires. Designed with a square design, snap-locking mounting, and without a label holder, the unit has a contact durability rating of 30 and weighs 11 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8113317
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8113317.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 30
- Product weight
- 11 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1

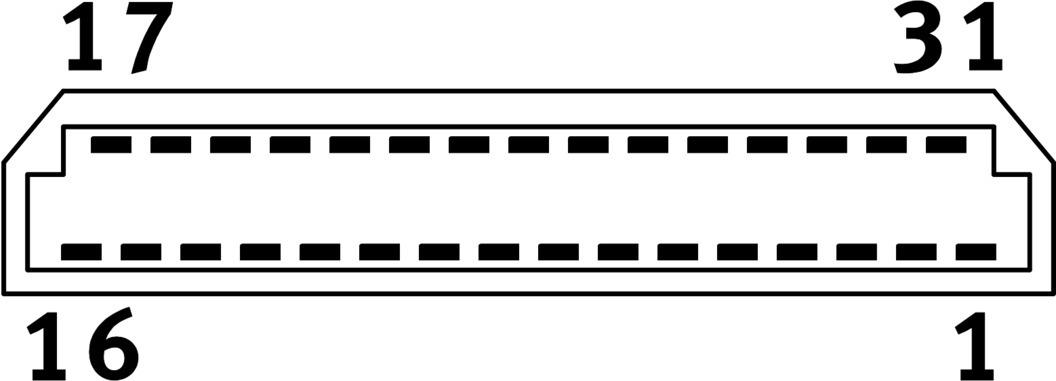

- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, occupied pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, note on cable outlet
- 90°
- Electrical connection 2, connection technology
- Connection pattern F1
- Electrical connection 2, number of pins/wires
- 31
- Electrical connection 2, occupied pins/wires
- 31
- Electrical connection 2, type of mounting
- Snap-locking
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 0.5 A
- Surge resistance
- 0.25 kV
- Cable length
- 0.2 m
- Cable characteristic
- For dynamic applications
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 0 mm
- Information on bending radius, xed cable installation
- Can be bent once
- Bending radius, exible cable installation
- 25 mm
