Festo
8114038

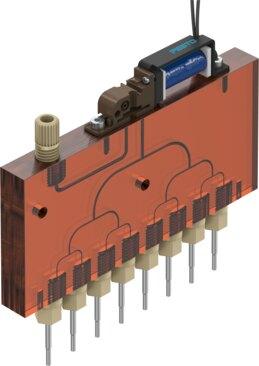

Dispense head VTOI-A-V8-30D3-U14-08-V-S015-1
Engineered with a 2/2-way closed monostable valve function, this Festo industrial component part number 8114038 features a 0.8 mm nominal width, a 10 µl fluid chamber valve internal volume, and a soft sealing principle operating at a 100% duty cycle on 24 V DC nominal voltage. The directly controlled unit achieves a minimum dosing volume of 1 µl through a 0.3 mm wide and 30 mm long dosing needle, delivering a typical dosing precision of ≤5% Tip-to-Tip CV and ≤3% Intra-run CV within an operating pressure range of -0.02 MPa to 0.065 MPa. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114038
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114038.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Operating pressure
- -0.02 MPa...0.065 MPa | -0.2 bar...0.65 bar | -2.9 psi...9.425 psi
- Internal volume
- 10 µl uid chamber valve | 178 µl distributor block with valve, needle and ttings
- Nominal width
- 0.8 mm
- Nominal width of dosing needle
- 0.3 mm
- Length of dosing needle
- 30 mm
- Width dimension
- 9 mm
- Sealing principle
- Soft
- Mounting position
- Vertical
- Reset method
- Mechanical spring
- Type of control
- directly
- Suitability for vacuum
- Yes
- Min. dosing volume
- 1 µl
- Note on dosing volume
- Depending on the conguration, environment and application
- Typical dosing precision
- ≤5% Tip-to-Tip CV | ≤ 3% Intra-run CV
- Note on dosing precision
- Depending on the conguration, environment and application
- Duty cycle
- 100%
- Electrical power consumption
- 2 W
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Medium
- Liquid media | Gaseous media
- Information on medium
- Maximum particle size 20 µm
- Application note
- See application note (available on the support portal at festo.com)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
