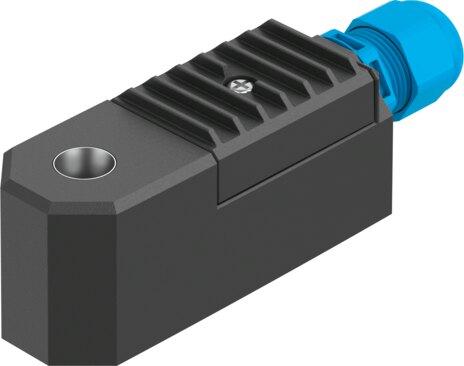

Reference imageConfirm configuration by manufacturer part number.
Festo
8114078
Solenoid coil VACC-S13-11-K4-1-NM4A
Festo Solenoid coil VACC-S13-11-K4-1-NM4A, part number 8114078, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8114078
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114078.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Required current consumption
- 16 mA
- Insulation class
- H
- Max. input power Pi
- 1.2 W
- Max. input voltage Vi
- 32 V
- Max. input current Ii
- 0.2 A
- Coil characteristics
- 14 - 32 V DC: 0.22 - 1.1 W
- Effective internal capacitance Ci
- Negligibly small
- Effective internal inductance Li
- Negligibly small
- Permissible voltage uctuations
- -15% / +10%
- Explosion protection certication outside the EU
- EPL Db (BR) | EPL Gb (BR)
- Explosion prevention and protection
- Zone 1 (BR) | Zone 21 (BR)
- Certicate issuing authority
- DNV 17.0043X
- Type of ignition protection for gas
- Ex ia IIC T6, T5 Gb
- Type of (ignition) protection for dust
- Ex ia IIIC T80°C,T95°C IP65 Db
- Explosive ambient temperature
- T5, T95°C: -30°C <= Ta <= +65°C | T6, T80°C: -30°C <= Ta <= +50°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Product weight
- 330 g
- Electrical connection
- Terminal box, cable entry thread M20x1.5
- Note on materials
- RoHS compliant
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114078. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
