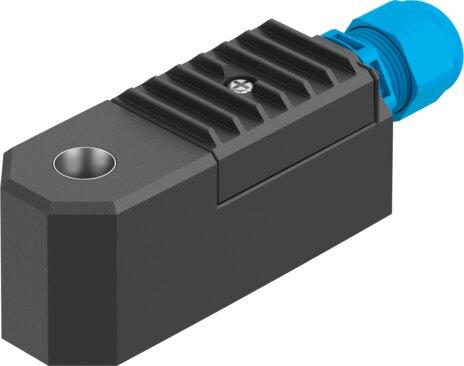

Reference imageConfirm configuration by manufacturer part number.
Festo
8114135
Solenoid coil VACC-S13-11-K4-1-NE4A
The Festo part number 8114135 is an electrical industrial component featuring a 100% duty cycle, 16 mA required current consumption, and an insulation class of H. It operates with a maximum input power of 1.2 W, a maximum input voltage of 32 V, a maximum input current of 0.2 A, and permissible voltage fluctuations of -15% / +10% with coil characteristics ranging from 14 to 32 V DC at 0.22 to 1.1 W. Certified for explosive atmospheres with EPL Db and Gb ratings for Zone 1 and Zone 21 under certificate GYJ20.1094X, this unit has effective internal capacitance of 0 µF, effective internal inductance of 0 mH, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114135
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114135.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Required current consumption
- 16 mA
- Insulation class
- H
- Max. input power Pi
- 1.2 W
- Max. input voltage Vi
- 32 V
- Max. input current Ii
- 0.2 A
- Coil characteristics
- 14 - 32 V DC: 0.22 - 1.1 W
- Effective internal capacitance Ci
- 0 µF
- Effective internal inductance Li
- 0 mH
- Permissible voltage uctuations
- -15% / +10%
- Explosion protection certication outside the EU
- EPL Db (CN) | EPL Gb (CN)
- Explosion prevention and protection
- Zone 1 (CN) | Zone 21 (CN)
- Certicate issuing authority
- GYJ20.1094X
- Type of ignition protection for gas
- Ex ia IIC/IIB T5/T6 Gb
- Type of (ignition) protection for dust
- Ex ia IIIC T95°C/T80°C Db
- Explosive ambient temperature
- T5, T95°C: -30°C <= Ta <= +65°C | T6, T80°C: -30°C <= Ta <= +50°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Product weight
- 330 g
- Electrical connection
- Terminal box, cable entry thread M20x1.5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114135. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
