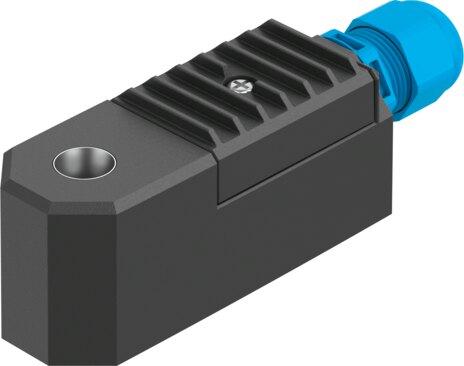

Reference imageConfirm configuration by manufacturer part number.
Festo
8114136
Solenoid coil VACC-S13-11-K4-1-KS4A
The Festo part number 8114136 is an electrical industrial component featuring a 100% duty cycle, a required current consumption of 16 mA, and coil characteristics ranging from 14 to 32 V DC at 0.22 to 1.1 W. Designed for any mounting position with insulation class H, this unit handles a maximum input voltage Vi of 32 V, max input power Pi of 1.2 W, and max input current Ii of 0.2 A while tolerating voltage fluctuations of -15% and +10%. It carries CE markings conforming to the EU EMC and explosion protection directives, alongside ATEX and KR explosion protection certifications for Gas Zone 1 and Dust Zone 21 environments with Ex ia IIC T5 and T6 ignition protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114136
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114136.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Required current consumption
- 16 mA
- Insulation class
- H
- Max. input power Pi
- 1.2 W
- Max. input voltage Vi
- 32 V
- Max. input current Ii
- 0.2 A
- Coil characteristics
- 14 - 32 V DC: 0.22 - 1.1 W
- Effective internal capacitance Ci
- Negligibly small
- Effective internal inductance Li
- Negligibly small
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (KR) | EPL Gb (KR)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (KR) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (KR) | Zone 22 (ATEX)
- Certicate issuing authority
- 21-AV4BO-0280X | 22-AV4BO-0052X
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex ia IIC T5, T6
- Type of (ignition) protection for dust
- Ex iaD 21 T80/T95°C
- Explosive ambient temperature
- T5, T95°C: -30°C <= Ta <= +65°C | T6, T80°C: -30°C <= Ta <= +50°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
