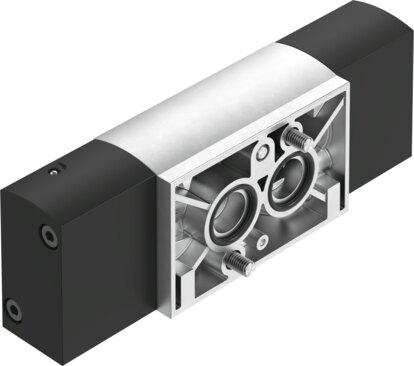

Reference imageConfirm configuration by manufacturer part number.
Festo
8114687
Solenoid valve VSNC-FT-B52-G14-P2
The Festo part number 8114687 is a 5/2-way bistable industrial component featuring a 32 mm width and a plate seat structural design with a soft sealing principle. This piloted valve operates at a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) with a normal nominal flow rate of 1000 l/min, a non-reversible flow direction, and an internal pilot air supply port. It includes an adjustable exhaust air function, a negative overlap lap, and a 2 ms changeover time while supporting a 100% duty cycle in any mounting position via a NAMUR connection pattern conforming to standard VDI/VDE 3845. Operating voltage and coil characteristics depend on the solenoid coil, which is to be ordered separately and functions without a manual override. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114687
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114687.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Plate seat
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Changeover time
- 2 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 422 g
- Type of mounting
- With through-hole
- Venting hole connection
- Not ducted
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- NAMUR connection pattern
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114687. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
