Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

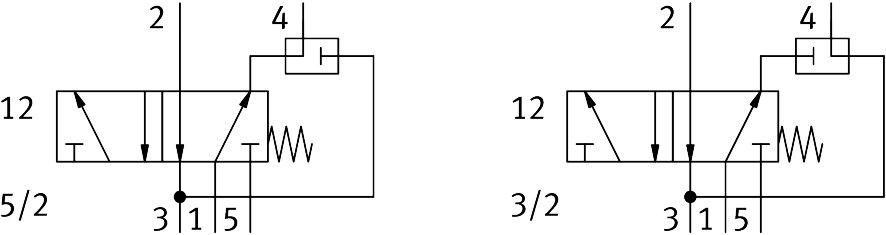

Reference imageConfirm configuration by manufacturer part number.
Festo
8114698
Solenoid valve VSNC-FTC-M52-M-N14-P2
The Festo 8114698 is a 32 mm wide industrial component featuring a switchable 5/2- or 3/2-way valve function with a plate seat structural design and soft sealing principle. Operating via piloted, electrical actuation with an internal pilot air supply, it delivers a normal nominal flow rate of 800 l/min at an operating pressure ranging from 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar). This unit conforms to the VDI/VDE 3845 NAMUR standard, utilizes a NAMUR pneumatic working port connection pattern, features a mechanical spring reset method, and includes an adjustable exhaust air function with a 6 ms switching time off. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114698
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114698.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2- or 3/2-way, switchable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Standard nominal ow rate, exhaust air return 4->3
- 110 l/min
- Switching time off
- 6 ms
- On switching time
- 4 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 382 g
- Type of mounting
- With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114698. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
