8114760

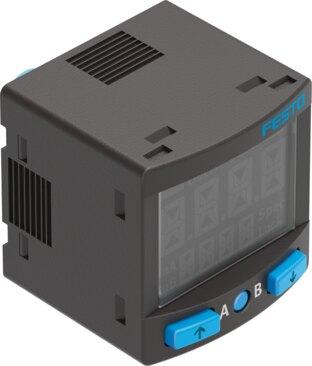

Name: Festo 8114760 Pressure sensor SPAN-B-B2R-Q4-PN-L1
Brand: Festo

Pressure sensor SPAN-B-B2R-Q4-PN-L1

The Festo part number 8114760 is a piezoresistive pressure sensor engineered to measure relative pressure within a range of -0.1 to 0.1 MPa (-1 to 1 bar, -14.5 to 14.5 psi) using compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases. This component features a switchable PNP/NPN switching output supporting window and threshold value comparators with switchable N/C and N/O contact functions, operating across a medium and ambient temperature range of 0 °C to 50 °C with an accuracy of 1.5 %FS. It carries RCM compliance, c UL us-Listed (OL) certification, CE marking per EU EMC and RoHS directives, and UKCA marking to UK instructions for EMC and RoHS. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8114760
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8114760.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor
Pressure measuring range initial value: -0.1 MPa | -1 bar | -14.5 psi
Pressure measuring range end value: 0.1 MPa | 1 bar | 14.5 psi
Max. overload pressure: 5 bar
Overload pressure: 0.5 MPa | 5 bar | 72.5 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Lubricated operation possible
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Accuracy in ± % FS: 1.5 %FS
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-eﬃcient in ± %FS/K: 0.1 %FS/K
Switching output: PNP/NPN switchable
Switching function: Window comparator | Threshold value comparator
Switching element function: N/C contact/N/O contact, switchable
Max. output current: 80 mA
Short-circuit protection: Yes
DC operating voltage range: 10.8 V...30 V

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8114760. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
