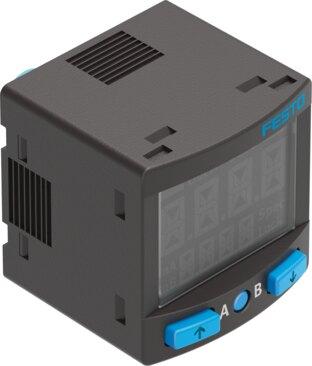

Reference imageConfirm configuration by manufacturer part number.
Festo
8114761
Pressure sensor SPAN-B-V1R-Q4-PN-L1
The Festo 8114761 is a piezoresistive pressure sensor designed to measure relative pressure across a range from 0 to -0.1 MPa (0 to -1 bar, 0 to -14.5 psi) utilizing compressed air meeting ISO 8573-1:2010 [7:4:4] or inert gases. This component features an overload pressure rating of 5 bar (0.5 MPa, 72.5 psi), a maximum overload pressure of 5 bar, a measurement accuracy of 1.5 %FS, a repetition accuracy of 0.3 %FS, and a temperature coefficient of 0.1 %FS/K within an operating medium and ambient temperature range of 0 °C to 50 °C. It provides switchable PNP/NPN switching outputs with window comparator and threshold value comparator functions, alongside N/C and N/O switchable contact elements. Compliant with RCM, c UL us - Listed (OL), EU and UK EMC and RoHS directives, and RoHS material standards, this part permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114761
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114761.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- -0.1 MPa | -1 bar | -14.5 psi
- Max. overload pressure
- 5 bar
- Overload pressure
- 0.5 MPa | 5 bar | 72.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.1 %FS/K
- Switching output
- PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 80 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 10.8 V...30 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114761. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
