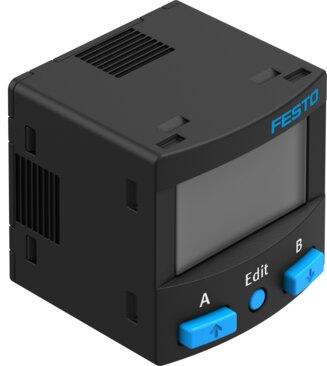

Reference imageConfirm configuration by manufacturer part number.
Festo
8114773
Pressure sensor SPAN-B-V1R-M5FAL-PN-L1+2.5S
The Festo 8114773 is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 to -0.1 MPa, 0 to -1 bar, or 0 to -14.5 psi with an accuracy of 1.5 percent FS and a repetition accuracy of 0.3 percent FS. This component operates with compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases within a medium and ambient temperature range of 0 degrees C to 50 degrees C, supporting lubricated operation and featuring a switchable PNP/NPN switching output with window comparator and threshold value comparator functions. It complies with RCM, c UL us - Listed (OL), EU and UK EMC directives, EU and UK RoHS instructions, and is RoHS compliant while withstanding a maximum overload pressure of 5 bar and an overload pressure of 0.5 MPa, 5 bar, or 72.5 psi. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114773
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114773.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- -0.1 MPa | -1 bar | -14.5 psi
- Max. overload pressure
- 5 bar
- Overload pressure
- 0.5 MPa | 5 bar | 72.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.1 %FS/K
- Switching output
- PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 80 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 10.8 V...30 V
