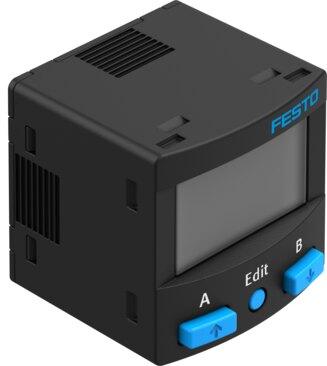

Reference imageConfirm configuration by manufacturer part number.
Festo
8114774
Pressure sensor SPAN-B-B11R-Q4-PN-L1+2.5S
The Festo part number 8114774 is an industrial component utilizing a piezoresistive pressure sensor to measure relative pressure across a range of -0.1 to 1 MPa (-1 to 10 bar, or -14.5 to 145 psi) with an accuracy of 1.5 %FS and a repetition accuracy of 0.3 %FS. It features a switchable PNP/NPN switching output supporting window comparator and threshold value comparator functions, configurable as N/C or N/O contact, while operating within a medium and ambient temperature range of 0 °C to 50 °C using compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases. Certified with RCM compliance, c UL us - Listed (OL), CE marking per EU EMC and RoHS directives, and UKCA marking, this RoHS-compliant unit accommodates lubricated operation and handles a maximum overload pressure of 15 bar (1.5 MPa, 217.5 psi) with a temperature coefficient of 0.1 %FS/K. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114774
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114774.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- -0.1 MPa | -1 bar | -14.5 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Max. overload pressure
- 15 bar
- Overload pressure
- 1.5 MPa | 15 bar | 217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.1 %FS/K
- Switching output
- PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 80 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 10.8 V...30 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114774. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
