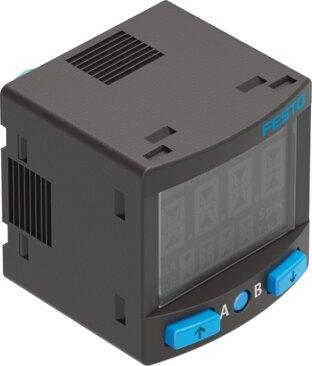

Reference imageConfirm configuration by manufacturer part number.
Festo
8114776
Pressure sensor SPAN-B-V1R-Q4-PN-L1+2.5S
The Festo 8114776 industrial component is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 to -0.1 MPa (0 to -1 bar, 0 to -14.5 psi) with an accuracy of 1.5 %FS and a repetition accuracy of 0.3 %FS. It features a switchable PNP/NPN switching output supporting window and threshold value comparators with configurable N/C or N/O contact functions. Operating within a medium and ambient temperature range of 0 °C to 50 °C, the unit processes compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases with a maximum overload pressure of 5 bar. This RoHS compliant device carries RCM, c UL us - Listed (OL), CE, and UKCA markings in accordance with applicable EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8114776
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8114776.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- -0.1 MPa | -1 bar | -14.5 psi
- Max. overload pressure
- 5 bar
- Overload pressure
- 0.5 MPa | 5 bar | 72.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.1 %FS/K
- Switching output
- PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 80 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 10.8 V...30 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8114776. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
