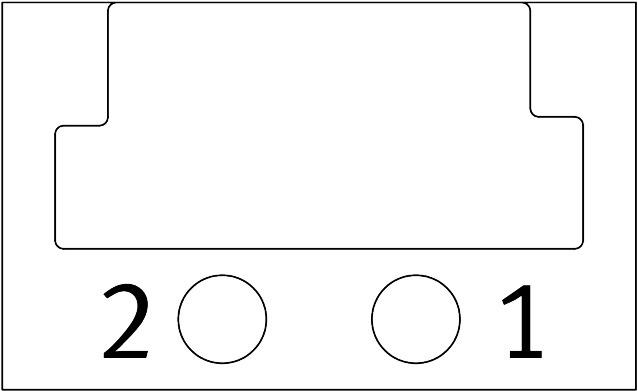

Reference imageConfirm configuration by manufacturer part number.
Festo
8115099
Connecting cable NEBV-Q7G2-PD-0.5-N-LE2
The Festo 8115099 is an industrial component featuring a square field device side socket with a straight cable outlet, Q7 connection pattern, and two occupied pins without a label holder. On the control side, electrical connection 2 utilizes an open end twin cable with two occupied pins, supporting a DC operating voltage range of 0 V to 30 V and a current rating of 0.3 A at 40° C. This 2.3 g part provides a surge resistance of 1.2 kV and incorporates no reverse polarity protection or contact durability beyond 20 cycles. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8115099
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8115099.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 20
- Product weight
- 2.3 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern Q7
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Twin cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 0.3 A
- Surge resistance
- 1.2 kV
- Reverse polarity protection
- No
- Protective earth connection
- Not available
- Shield
- No
- Information on operation
- Only operate with external power reduction
- Cable length
- 0.5 m
- Cable characteristic
- Basic
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 11 mm
- Bending radius, exible cable installation
- 16.5 mm
- Cable diameter
- 1.1 mm
- Cable design
- 2 x 0.08 mm²
- Nominal conductor cross section
- 0.08 mm² | AWG28
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8115099. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
