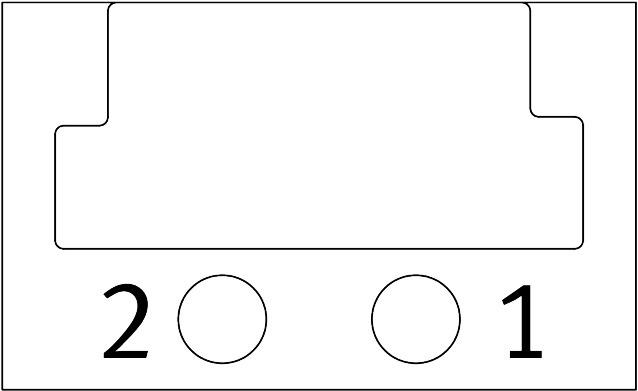

Reference imageConfirm configuration by manufacturer part number.
Festo
8115892
Connecting cable NEBV-Q7G2-PD-0.1-N-LE2
The Festo part number 8115892 is an industrial component featuring a square field device side socket with a straight cable outlet, connection pattern Q7, and 2 occupied pins out of 2 total pins. The control side utilizes a twin cable with 2 open-ended wires, operating within a DC voltage range of 0 V to 30 V and a current rating of 0.3 A at 40° C. This 0.5 g unit includes 20 contact durability cycles, a surge resistance of 1.2 kV, no reverse polarity protection, and is supplied without a label holder via inserted mounting. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8115892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8115892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 20
- Product weight
- 0.5 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern Q7
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Twin cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 0.3 A
- Surge resistance
- 1.2 kV
- Reverse polarity protection
- No
- Protective earth connection
- Not available
- Shield
- No
- Information on operation
- Only operate with external power reduction
- Cable length
- 0.1 m
- Cable characteristic
- Basic
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 11 mm
- Bending radius, exible cable installation
- 16.5 mm
- Cable diameter
- 1.1 mm
- Cable design
- 2 x 0.08 mm²
- Nominal conductor cross section
- 0.08 mm² | AWG28
