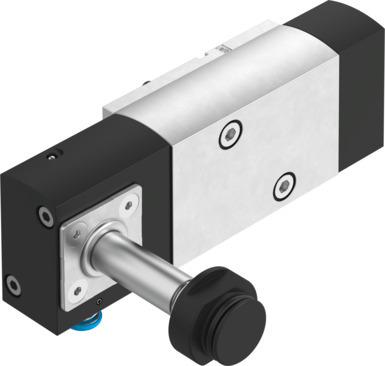

Reference imageConfirm configuration by manufacturer part number.
Festo
8116375
Air Solenoid valve VSNC-FTC-M52-MH-N14-F19
The Festo 8116375 is a 32 mm wide industrial component featuring a switchable 5/2- or 3/2-way valve function with a plate seat structural design and soft sealing principle. It utilizes an electrical actuation type with a piloted control, internal pilot air supply port, and non-detenting manual override, operating within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar) while delivering a normal nominal flow rate of 800 l/min and an exhaust air return flow rate of 110 l/min. Featuring a NAMUR connection pattern conforming to VDI/VDE 3845 standards, this non-reversible component includes an adjustable exhaust air function, mechanical spring reset method, and a negative overlap lap with a 65 ms switching time off. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116375
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116375.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2- or 3/2-way, switchable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Standard nominal ow rate, exhaust air return 4->3
- 110 l/min
- Switching time off
- 65 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 480 g
- Type of mounting
- With through-hole
