8116379

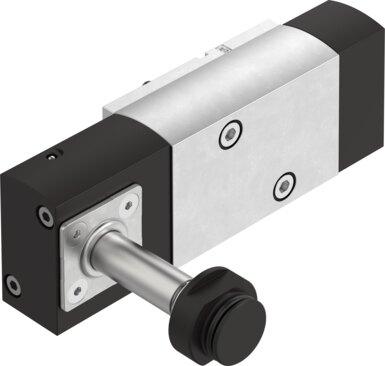

Name: Festo 8116379 Air Solenoid valve VSNC-FTC-M52-M-N14-F19
Brand: Festo

Air Solenoid valve VSNC-FTC-M52-M-N14-F19

The Festo 8116379 is an electrical industrial component featuring a switchable 5/2- or 3/2-way valve function with a 32 mm width and a plate seat structural design. It utilizes a NAMUR connection pattern conforming to VDI/VDE 3845 standards, an internal pilot air supply port, and a soft sealing principle with a negative overlap lap. Operating pressure ranges from 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar), delivering a normal nominal flow rate of 800 l/min and an exhaust air return flow rate of 110 l/min through an adjustable exhaust air function. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8116379
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8116379.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2- or 3/2-way, switchable
Actuation type: Electrical
Width: 32 mm
Normal nominal ow rate (normalized to DIN 1343): 800 l/min
Pneumatic working port: NAMUR connection pattern
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Structural design: Plate seat
Reset method: Mechanical spring
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: VDI/VDE 3845 (NAMUR)
Manual override: None
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Negative overlap
Standard nominal ow rate, exhaust air return 4->3: 110 l/min
Switching time oﬀ: 65 ms
On switching time: 25 ms
Duty cycle: 100%
Coil characteristics: See solenoid coil, to be ordered separately
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: -20 °C...60 °C
Ambient temperature: -20 °C...60 °C
Product weight: 478 g
Type of mounting: With through-hole

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8116379. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
