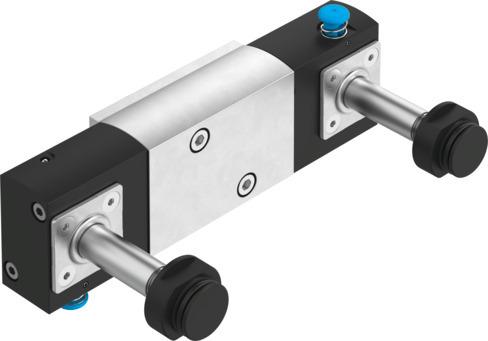

Reference imageConfirm configuration by manufacturer part number.
Festo
8116382
Air Solenoid valve VSNC-FT-B52-H-N14-F19
The Festo 8116382 is a 32 mm wide, 5/2-way bistable industrial component featuring a plate seat structural design with a soft sealing principle and negative overlap lap. This piloted unit operates at a normal nominal flow rate of 1000 l/min across an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) utilizing an internal pilot air supply port and an adjustable exhaust air function. Conforming to the VDI/VDE 3845 (NAMUR) standard with a NAMUR connection pattern, it provides electrical actuation via a separately ordered solenoid coil operating at a 100% duty cycle with a 20 ms changeover time, non-detenting manual override, and any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116382
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116382.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Plate seat
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Changeover time
- 20 ms
- Duty cycle
- 100%
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 613 g
- Type of mounting
- With through-hole
- Venting hole connection
- Not ducted
- Pneumatic connection 1
- 1/4 NPT
- Pneumatic connection 2
- NAMUR connection pattern
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8116382. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
