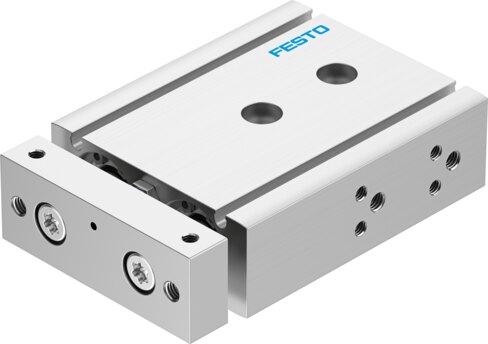

Name: Festo 8116415 Twin cylinder DGTZ-GF-20- -P-A
Brand: Festo

Twin cylinder DGTZ-GF-20- -P-A

The Festo 8116415 is a double-acting industrial drive unit featuring a yoke operating mode, a 20 mm piston diameter, and a stroke length ranging from 101 mm to 200 mm with hard limits at both extremes. This structural guide incorporates a plain-bearing guide, elastic cushioning rings or pads at both ends managing 0.2 Nm impact energy, and an adjustable end position range of 10 mm. Operating via compressed air as per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar), the unit supports position sensing via proximity switch and functions across ambient temperatures from -10 °C to 80 °C. It is built with a corrosion resistance class of CRC 1, VDMA24364 Zone III LABS conformity, and ISO 14644-1 Class 5 cleanroom suitability, while allowing optional oil lubrication that becomes required for further use. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8116415
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8116415.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. stroke limit (hard): 101 mm
Stroke: 101 mm...200 mm
Max. stroke limit (hard): 200 mm
Adjustable end position range/length: 10 mm
Piston diameter: 20 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Impact energy in the end positions: 0.2 Nm
Max. payload as a function of the stroke at dened distance xs: 2 N...5.5 N
Theoretical force at 6 bar, retracting: 283 N
Theoretical force at 6 bar, advancing: 376 N
Moving mass: 265 g...389 g
Moving mass at 0 mm stroke: 138.5 g
Additional moving mass per 10 mm stroke: 12.5 g
Product weight: 748 g...1114 g
Basic weight with 0 mm stroke: 374 g
Additional weight per 10 mm stroke: 37 g
Pneumatic connection: M5
