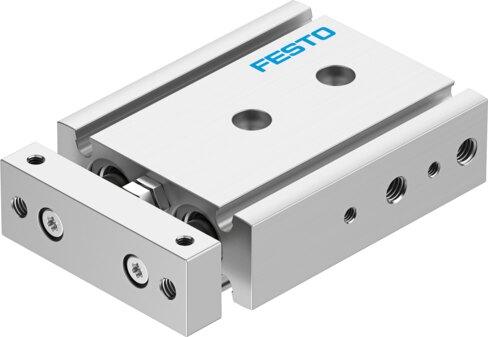

Reference imageConfirm configuration by manufacturer part number.
Festo
8116418
Twin cylinder DGTZ-GF-10- -P-A
This Festo industrial component features a double-acting drive unit operating mode with a yoke design, a 10 mm piston diameter, and an adjustable stroke ranging from 81 mm to 150 mm bounded by hard stroke limits. Built with a plain-bearing guide and elastic cushioning rings or pads at both ends, the unit operates within a pressure range of 0.15 MPa to 0.8 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It accommodates any mounting position, provides position sensing via proximity switch, achieves cleanroom suitability of ISO Class 5 according to ISO 14644-1, and functions in ambient temperatures from -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116418
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116418.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. stroke limit (hard)
- 81 mm
- Stroke
- 81 mm...150 mm
- Max. stroke limit (hard)
- 150 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.08 Nm
- Max. payload as a function of the stroke at dened distance xs
- 1 N...2 N
- Theoretical force at 6 bar, retracting
- 60 N
- Theoretical force at 6 bar, advancing
- 94 N
- Moving mass
- 72 g...103 g
- Moving mass at 0 mm stroke
- 35.5 g
- Additional moving mass per 10 mm stroke
- 4.5 g
- Product weight
- 277 g...415 g
- Basic weight with 0 mm stroke
- 115 g
- Additional weight per 10 mm stroke
- 20 g
- Pneumatic connection
- M5
