Festo
8116424

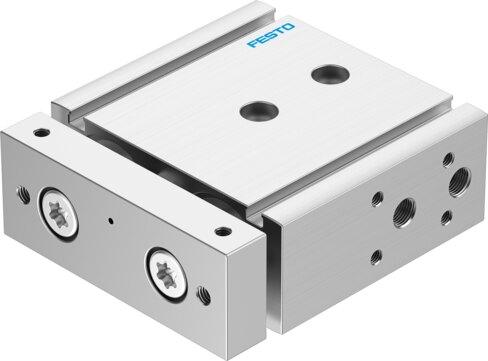

Twin cylinder DGTZ-GF-32- -P-A
The Festo 8116424 is a double-acting industrial guide drive unit featuring a 32 mm piston diameter, an adjustable stroke range from 101 mm to 200 mm with hard limits, and an adjustable end position length of 10 mm. This component operates on compressed air according to ISO 8573-1:2010 [7:4:4] at pressures between 0.1 MPa and 0.8 MPa, utilizing elastic cushioning rings at both ends and a plain-bearing yoke drive with a 0.4 Nm end-position impact energy. Designed with position sensing via proximity switch, an ambient temperature range of -10 °C to 80 °C, and ISO 14644-1 Class 5 cleanroom suitability, it accommodates any mounting position and oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116424
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116424.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. stroke limit (hard)
- 101 mm
- Stroke
- 101 mm...200 mm
- Max. stroke limit (hard)
- 200 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.4 Nm
- Max. payload as a function of the stroke at dened distance xs
- 3 N...10.8 N
- Theoretical force at 6 bar, retracting
- 724 N
- Theoretical force at 6 bar, advancing
- 966 N
- Moving mass
- 740 g...1051 g
- Moving mass at 0 mm stroke
- 421 g
- Additional moving mass per 10 mm stroke
- 31.5 g
- Product weight
- 1809 g...2636 g
- Basic weight with 0 mm stroke
- 966 g
- Additional weight per 10 mm stroke
- 83.5 g
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8116424. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
