Festo
8116784

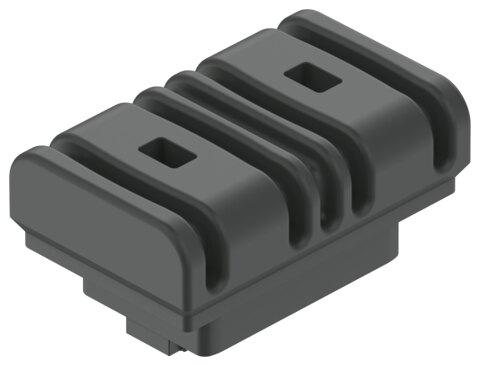

Protective cap DHAS-DP-B23-10-L-N
The Festo 8116784 is an industrial component designed for a gripper, featuring a size of 10 and an 8 mm stroke. Weighing 3.7 g with an NBR protective cap, this RoHS-compliant part operates within an ambient temperature range of -10 °C to 60 °C and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) alongside VDMA24364-B2-L LABS conformity. It mounts via insertion in a slot from above. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116784
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116784.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Stroke
- 8 mm
- Design
- For gripper
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 3.7 g
- Type of mounting
- Can be inserted in slot from above
- Note on materials
- RoHS compliant
- Protective cap material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8116784. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
