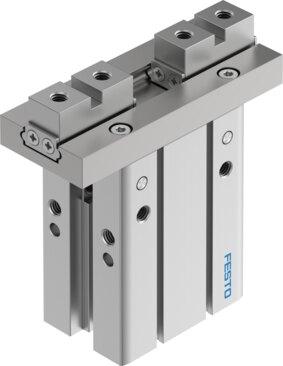

Reference imageConfirm configuration by manufacturer part number.
Festo
8116889
Parallel gripper DHPC-32-A-NO-S-2
The Festo 8116889 is a pneumatic industrial component featuring two parallel gripper jaws with an 11 mm stroke per jaw, a ball guide, and a single-acting open mode of operation with gripping force backup on opening. Operating within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar / 36.25 psi to 116 psi), this size 32 flat-mounted gripper achieves a repetition accuracy of 0.02 mm, a maximum interchangeability and rotational symmetry of 0.2 mm, zero angular play and backlash, a maximum operating frequency of 1 Hz, and position sensing via proximity switch. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116889
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116889.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke per gripper jaw
- 11 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Single-acting | Open
- Gripper function
- Parallel
- Gripping force backup
- On opening
- Structural design
- Lateral connection direction | Flat mounting type for gripper ngers | Lever | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 174 ms
- Min. closing time at 6 bar
- 76 ms
- Max. mass per external gripper nger
- 280 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
