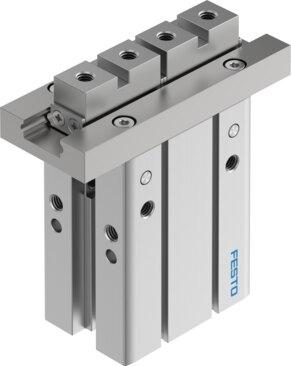

Reference imageConfirm configuration by manufacturer part number.
Festo
8116892
Parallel gripper DHPC-32-A-NC-S-2
This Festo size 32 industrial component is a pneumatic parallel gripper featuring two jaws with a stroke of 11 mm per jaw and a single-acting, closed mode of operation. Engineered with a ball guide and a lever structural design providing positively driven motion, it achieves a repetition accuracy of 0.02 mm and includes gripping force backup during closing. The unit operates within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar or 36.25 psi to 116 psi) with position sensing via proximity switch, a maximum operating frequency of 1 Hz, and minimum opening and closing times of 162 ms and 55 ms at 6 bar respectively. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8116892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8116892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke per gripper jaw
- 11 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Single-acting | Closed
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Lateral connection direction | Flat mounting type for gripper ngers | Lever | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 162 ms
- Min. closing time at 6 bar
- 55 ms
- Max. mass per external gripper nger
- 280 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8116892. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
