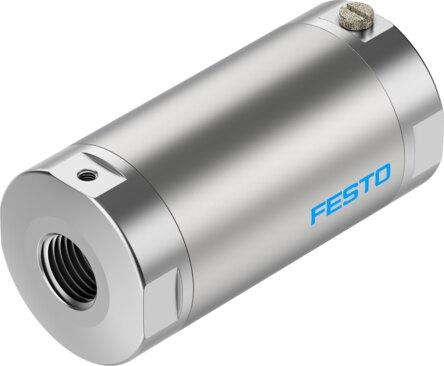

Reference imageConfirm configuration by manufacturer part number.
Festo
8117025
Pinch valve VZQA-C-M22C-6-TT-V2V4S1-2
The Festo part number 8117025 is a pneumatically operated pinch valve featuring a soft sealing principle and an in-line installation design with 1/4 NPT fitting connections. This 2/2-way, closed, monostable industrial component operates with a medium pressure range of 0 MPa to 0.2 MPa, a maximum viscosity of 4000 mm²/s, and supports both water and compressed air media. It utilizes an external pneumatic actuation method requiring an operating pressure of 0.35 MPa to 0.6 MPa via an M3 auxiliary pilot air port, accompanied by a mechanical spring reset and a reversible flow direction in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8117025
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8117025.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve, pneumatically operated
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1/4 NPT
- Nominal width DN
- 6
- Valve function
- 2/2-way, closed, monostable
- Flow direction
- Reversible
- Medium pressure
- 0 MPa...0.2 MPa | 0 bar...2 bar | 0 psi...29 psi
- Note on the medium pressure
- Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
- Operating pressure
- 0.35 MPa...0.6 MPa | 3.5 bar...6 bar | 50.75 psi...87 psi
- Nominal pressure of tting PN
- 10
- Burst pressure
- 1.6 MPa | 16 bar | 232 psi
- Reset method
- Mechanical spring
- Type of control
- Externally controlled
- Auxiliary pilot air port 12
- M3
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:1]
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
- Max. viscosity
- 4000 mm²/s
