Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

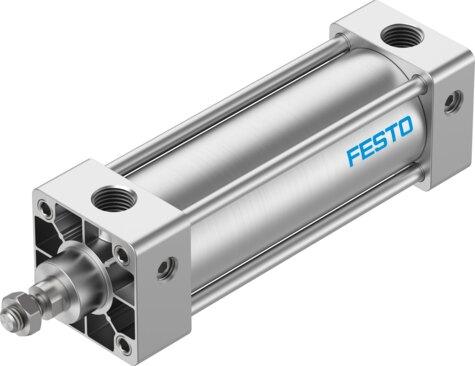

Reference imageConfirm configuration by manufacturer part number.
Festo
8117043
Standards-based cylinder DSNA-N-1 1/2"- -
The Festo 8117043 is a double-acting industrial component featuring a 1 1/2" piston diameter, adjustable pneumatic cushioning at both ends, and an operating pressure range of 12.905 psi to 139.925 psi (0.89 bar to 9.65 bar). Built with a stroke length configurable from 0.25 in to 48 in, this tie-rod cylinder conforms to the NFPA/T3.6.7 standard and allows for versatile installation via any mounting position with position sensing through a proximity switch. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8117043
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8117043.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.25 in...48 in
- Piston diameter
- 1 1/2"
- Piston rod thread
- 7/16-20 UNF-2B | 7/16-20 UNF-2A | 5/8-18 UNF-2A | 1/2-20 UNF-2A
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- NFPA/T3.6.7
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Flange on the end cap | Flange on the bearing cap | Foot mounting | Internal thread on piston rod | Special thread on piston rod | Swiveling rod eye mounting on the end cap | Through piston rod | Screwed-on swivel mounting position | Swivel mounting on end cap | Swivel clevis on end cap | Spacer bolt on end cap end | Spacer bolt on the bearing cap end | Temperature range -5 - 80°C | Piston rod at one end
- Operating pressure
- 0.089 MPa...0.965 MPa | 0.89 bar...9.65 bar | 12.905 psi...139.925 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8117043. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
