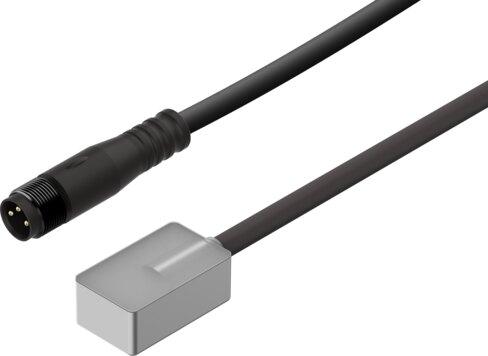

Reference imageConfirm configuration by manufacturer part number.
Festo
8117066
Proximity switch SDBF-FCS-1L-NU-K-N-M8
The Festo 8117066 is a block-design industrial component utilizing a magneto-resistive measuring principle to monitor position within an ambient temperature range of -4 °F to 176 °F. Featuring an NPN N.O. contact switching output, it operates on a DC voltage range of 6 V to 24 V with a maximum output current of 500 mA, a maximum DC switching capacity of 12 W, a 4 µs on time, and 1 V voltage drop. Built with short-circuit and reverse polarity protection, the RoHS-compliant unit connects via a longitudinal PVC cable sheath with a 3-pin M8x1 A-coded socket per EN 61076-2-104 in gray. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8117066
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8117066.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -4 °F...176 °F
- Switching output
- NPN
- Switching element function
- N.O. contact
- On time
- 4 µs
- Max. output current
- 500 mA
- Max. switching capacity DC
- 12 W
- Voltage drop
- 1 V
- Short-circuit protection
- Yes
- DC operating voltage range
- 6 V...24 V
- Reverse polarity protection
- Yes
- Electrical connection 1, connection type
- Cable with socket
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Connection outlet orientation
- Longitudinal
- Color cable sheath
- Gray
- Material of cable sheath
- PVC
- Type of mounting
- With mounting kit
- Mounting position
- Any
- Housing colour
- Transparent
- Housing material
- PA
- Switching status indication
- LED
- Ambient temperature with exible cable installation
- -4 °F...176 °F
- Degree of protection
- IP67 | NEMA 4
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8117066. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
